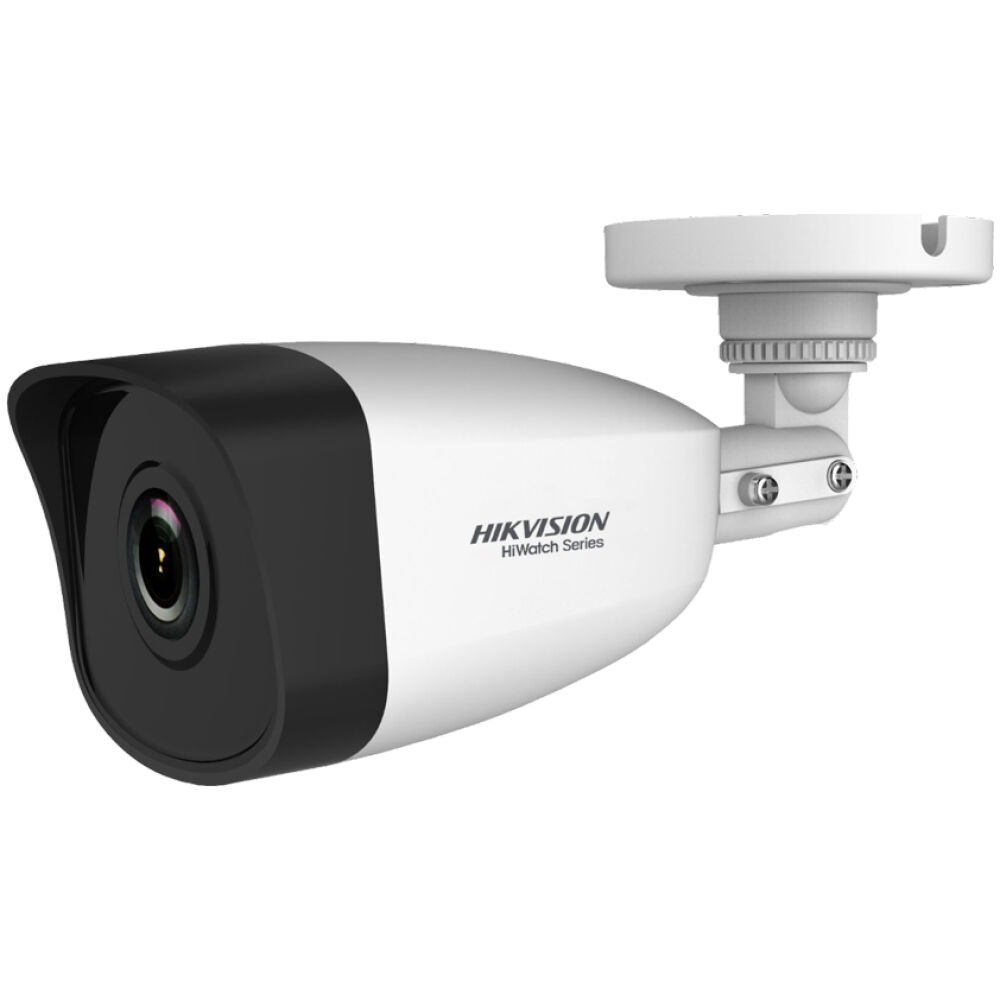

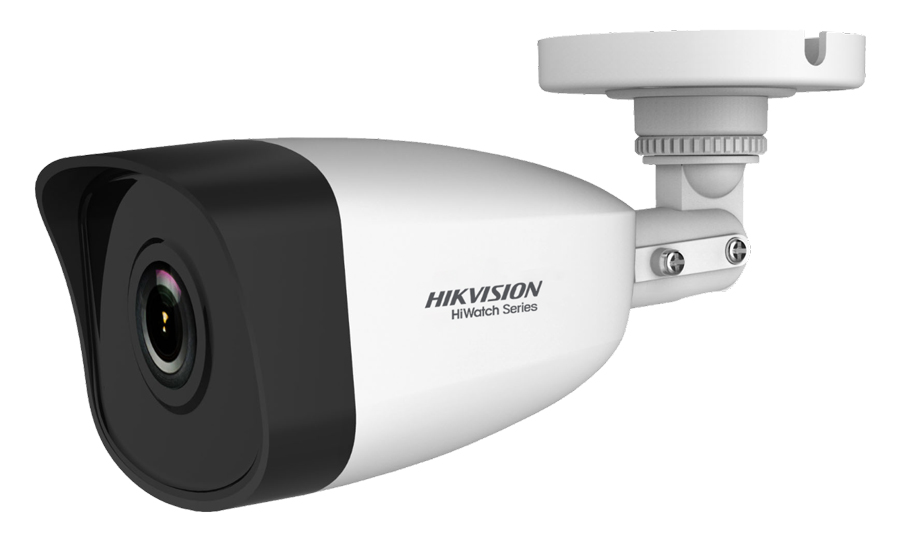

HIKVISION HIWATCH IP κάμερα HWI-B140H, 2.8mm, 4MP, Η.265, IP67, PoE

Τεχνικά Χαρακτηριστικά

Image Sensor: 1/3″ progressive scan CMOS
Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed: 1/3 s to 1/100, 000 s
Slow Shutter: Yes
Auto-Iris: No
Day & Night: IR cut filter
Digital Noise Reduction: 3D DNR
WDR: 120 dB
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Focal Length: 2.8 mm
Aperture: F2.0
Focus: Fixed
Angle of view: 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount: M12
IR Range: Up to 30 m
Wavelength: 850 nm
Video Compression: Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG
H.264 Type: Baseline Profile/Main Profile/High Profile
H.264+: Main stream supports
H.265 Type: Main Profile
H.265+: Main stream supports
Video Bit Rate: 32 Kbps to 8 Mbps
Region of Interest: 1 fixed region for main stream and sub-stream
Resolution: 4MP
Main Stream Max. Frame Rate: 50Hz: 20fps (2560×1440), 25fps (2304×1296, 1920×1080, 1280×720), 60Hz: 20fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720)
Sub-stream Max. Frame Rate: 50Hz: 25fps (640×480, 640×360, 320×240), 60Hz: 30fps (640x 480, 640×360, 320×240)
Image Enhancement: BLC, 3D DNR
Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, scheduled, day, night
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Network Storage: NAS (NFS, SMB/CIFS)
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API: ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users, 3 levels: Administrator, Operator, and User
Client: iVMS-4200, Hik-Connect
Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Operating Conditions: -30°C to 50°C, humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
Power Consumption: 12 VDC, 0.4 A, Max: 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection level: IP 67
Material: Front cover: metal, camera body: plastic, bracket: plastic

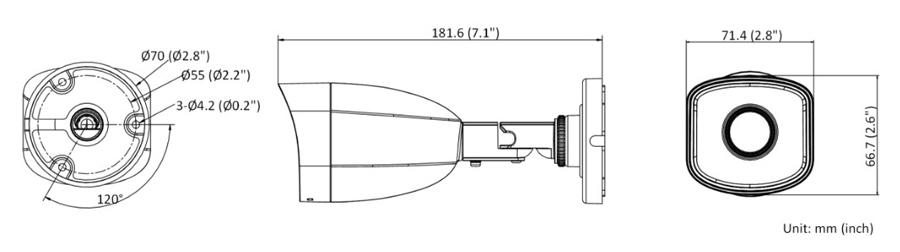

Dimensions: Φ 70 mm x 191.3mm
Weight: 280 g
