LONGSE XVR υβριδικό καταγραφικό XVRT3004D, H.265/H.264, 4 κανάλια

Τεχνικά χαρακτηριστικά

System
Main Processor: MC6630
Operating System: Embedded LINUX
Video
Input: Normal Mode: Analog: 4x(TVI/AHD: 5M/12fps, AHD/TVI/CVI: 4M/15fps, AHD/TVI: 3M @18fps, AHD/TVI/CVI: 1080P/720P, Analog: 960H), Analog+Network: 2xAnalog(TVI/AHD: 5M/12fps, AHD/TVI/CVI: 4M/15fps, AHD/TVI: 3M/18fps, AHD/TVI/CVI: 1080P/720P, Analog: 960H)+4xnetwork(MAX 2MP), Network: 9x5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth 48M)
Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD, 1 VGA
Audio
Input: 2 Channel RCA, support AOC
Two-way Audio: Όχι
Output: 1 Channel, RCA
Alarm
Sensor Input: Όχι
Output: Όχι
Motion Detection: 4 Channel(max 9 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
PTZ
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
Display
VGA: Resolution: 1920x1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HD Output: Resolution:1920x1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
Display Split: 9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression: H.265/H.264
Audio Compression: G.711U/G.711A
Resolution: 5MP_Lite(1296×1952), 4MP_Lite(1280×1440), 3MP_Lite(1024×1536), 1080N(960×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
Video Quality: Lowest/Low/Ordinary/Good/Better/Best
Record Rate: Analog: PAL:5MP_Lite(1296×1944 4*8fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps), 1080N(960×1080 4*18fps), 720P(1280×720 420fps), 960H(960×480 4*25fps), NTSC: 5MP_Lite(1296×1944 4*8fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps),1080N(960×1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*30fps)
Pure IP(H.265): PAL: 5MP/8x25fps, 4MP/9x25fps, 3MP/9x25fps, 1080P/9x25fps, 960P/9x25fps, 720P/9x25fps, D1/9x25fps NTSC: 5MP/8x30fps, 4MP/9x30fps, 3MP/9x30fps, 1080P/9x30fps, 960P/9x30fps, 720P/9x30fps, D1/9x30fps
Record Mode: ManualTimerMotion Detection
Playback & Backup
Decode Capability: 2CH 1080P/30fps
Sync Playback: Pure Analog: 4CH 960H/25fps, 2CH 720P/20fps, 2CH 1080N/18fps, 1CH 5M_LITE/8fps, 1CH 4M_LITE/15fps, 1CH 3M_LITE/18fps, Mixture mode: 4CH 720P/25fps, 2CH 1080P/25fps, 1CH 5M_LITE/8fps, 1CH 4M_LITE/15fps, 1CH 3M_LITE/18fps, Pure Network: 4CHx720P/25fps, 2CH 1080P/25fps, 1CH 5MP/25fps
Remote Playback: 1 Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback: 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP
Network
Interface1: RJ45 10M/100M Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1~25fps)
Smart Phonei: Phone, ipad, Android, Android pad
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)
General
UTC Control: Ναι
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V/2A ?4W (Without Hard Disk)
Working Environment: -10~55°C/10~90%

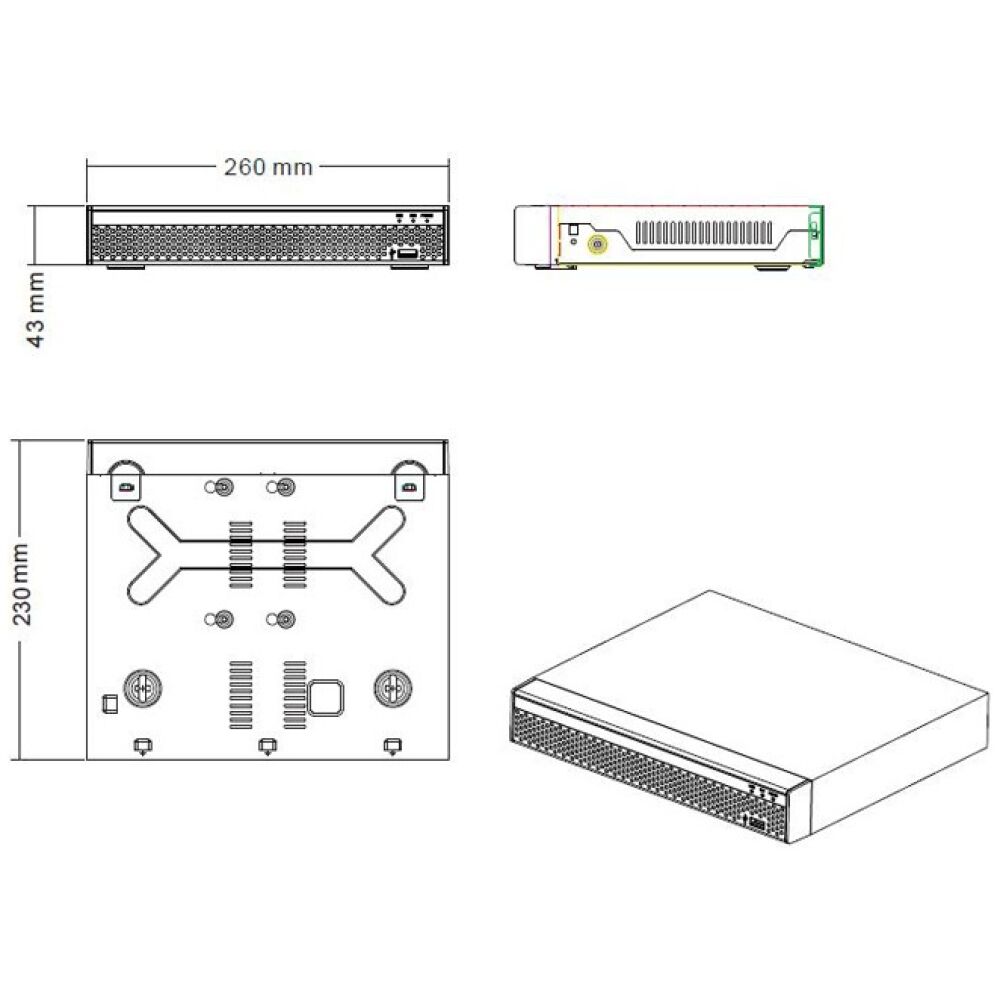

Διαστάσεις (WxDxH): 260 x 215 x 43(mm)
