POWERTECH NVR καταγραφικό με 4 κάμερες PT-1233, 4K, 4MP, 9 κανάλια

Τεχνικά Χαρακτηριστικά

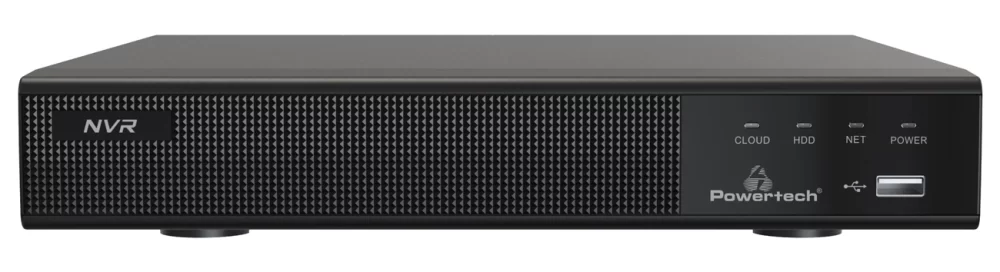

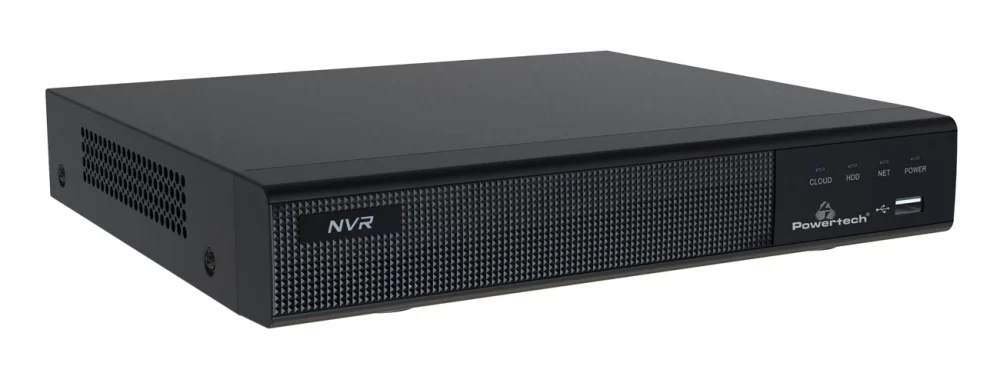

NVR Καταγραφικό

• Main Processor: ARM Cortex A7 Processor
• Operating System: Embedded LINUX
• Video input: 9CH, 3840×2160, 2592×1944, 2048×1536, 1920×1080,
• 1280×960, 1280×720, etc)
• Video output: 1x VGA, 1x HD
• Audio input: 1x RCA, support 9CH IPC audio input
• Audio output: 1x RCA(Linear, 1kΩ), HD output
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a, ADPCM_DVI4
• Intercom support: two-way
• Motion Detection: 9 Channel, MD Zones: 396 (22 x 18)
• HD Output: 4K 3840×2160, 2K 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024*768
• Display Split: 9CH, 8CH, 6CH, 4CH, 1CH
• Video Compression: H265, H264, H265+, H264+
• Interface: 1x RJ45 10M/100MAdaptive Ethernet Interface
• Onvif: Profile S, Profile G, Profile T
• Cloud Support: Yes
• Smartphone: iPhone, iPad, Android, Android Pad
• Interface Type: 1x SATA Hard Disk Interface (3.5″ SATA)
• Capacity: Up to 8TB capacity
• USB Interface: 2x USB 2.0
• Dimension (WxDxH): 260x230x43(mm)

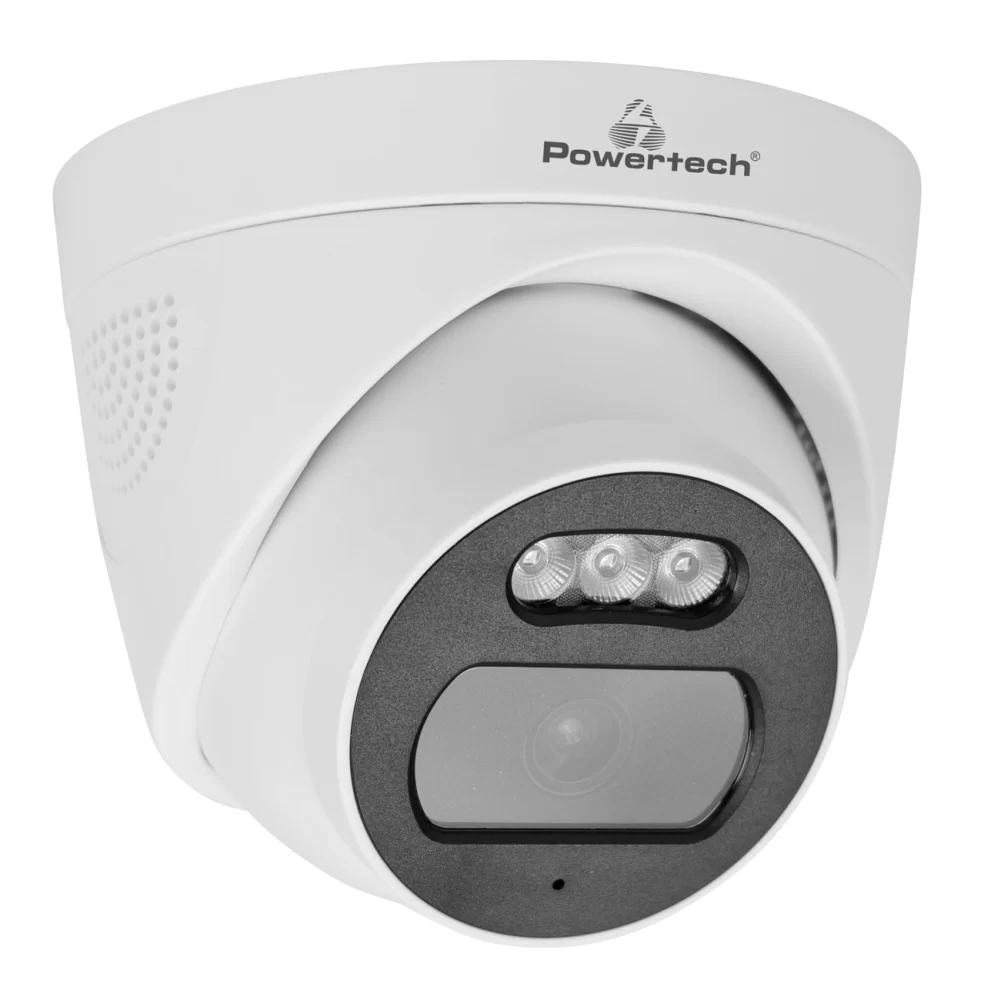

Dome IP κάμερα (PT-1237)

• Image Sensor: 1/3″ Progressive Scan CMOS Sensor
• Resolution: 4MP, 2560(H)x1440(V)
• Compression: H.264/H.265/JPEG/AVI/MJPEG
• Audio Compression: G711A/U
• TV System: PAL/NTSC
• Minimun Illumination Color: 0.04 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• S/N Ratio: 60dB
• Focal Length & FOV: Fixed 3.6 mm, horizontal FOV 73°, vertical FOV 40°, diagonal FOV 88°
• Infrared LED: 2x 42μ
• Infrared Distance: 25m
• Ethernet: RJ-45 (10/100Base-T)
• ONVIF support: ONVIF 19.12 (Profile S/T)
• P2P: Yes
• POE: Internal, support IEEE 802.3af
• Motion detection: Yes
• Housing: Plastic
• Audio: Built-in MIC
• Operation Temperature: -20 °C ~ +50 °C RH95% Max
• Power Source: DC12V +/-10%, 700mA
• Dimension: Φ109.43mm x 88.5mm

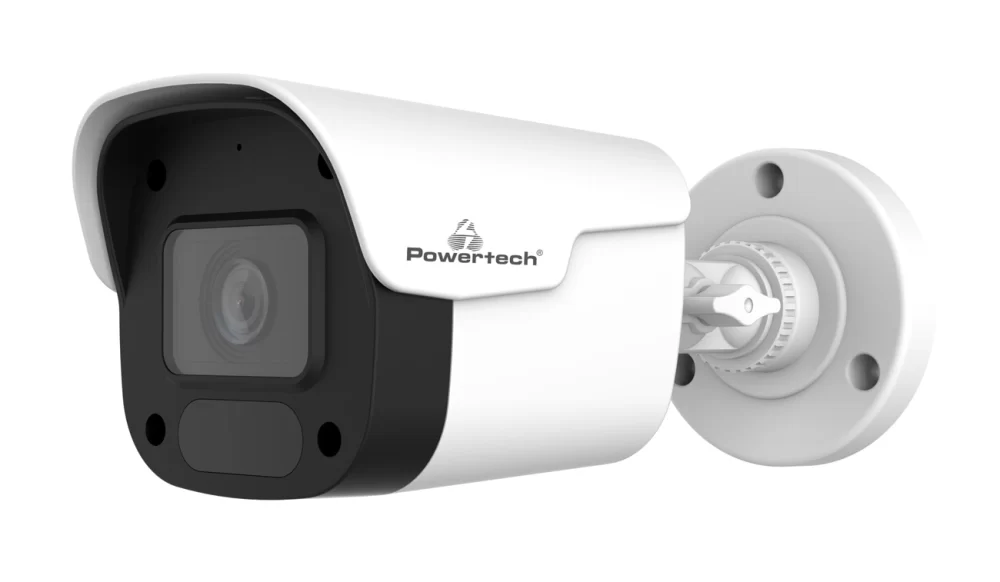

Bullet IP κάμερα (PT-1235)

• Image Sensor: 1/3″ Progressive Scan CMOS Sensor
• Resolution: 4MP, 2560(H)x1440(V)
• Compression: H.264/H.265/JPEG/AVI/MJPEG
• Audio Compression: G711A/U
• TV System: PAL/NTSC
• Minimun Illumination Color: 0.04 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• S/N Ratio: 60dB
• Focal Length & FOV: Fixed 3.6 mm, horizontal FOV 73°, vertical FOV 40°, diagonal FOV 88°
• Infrared LED: 2x 42μ
• Infrared Distance: 25m
• Ethernet: RJ-45 (10/100Base-T)
• ONVIF support: ONVIF 19.12 (Profile S/T)
• P2P: Yes
• POE: Internal, support IEEE 802.3af
• Motion detection: Yes
• Housing: Plastic, IP66
• IR Cut Filter: Yes
• Audio: Built-in MIC
• Operation Temperature: -20 °C ~ +50 °C RH95% Max
• Power Source: DC12V +/-10%, 700mA
• Dimension (WxDxH): 174 x 69.8 x 67.9mm
