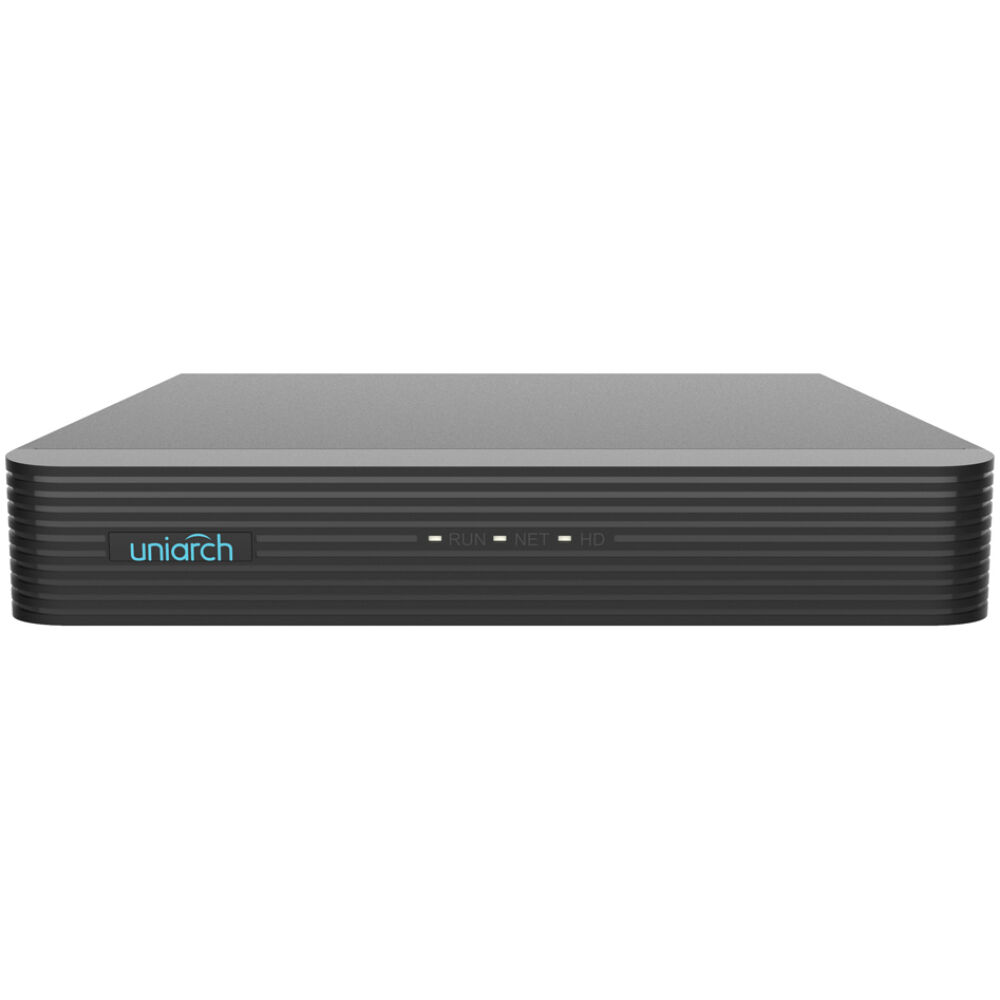

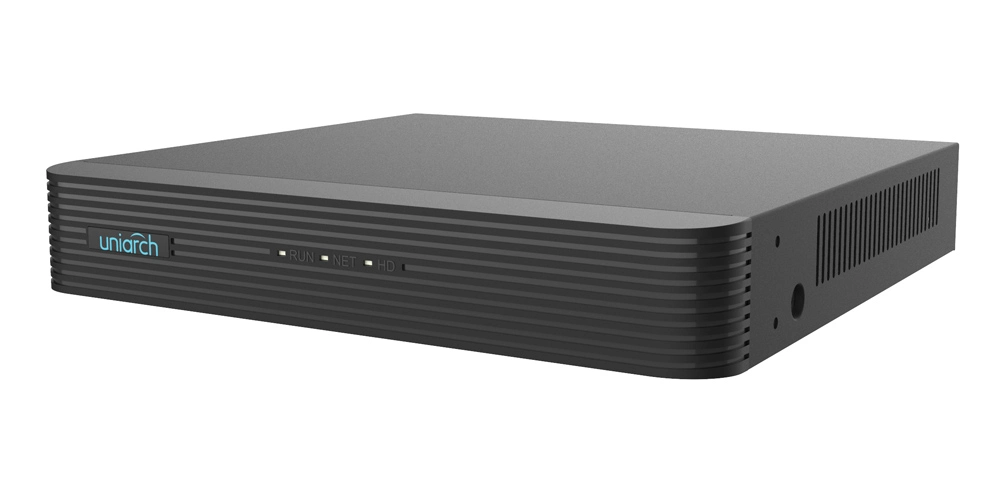

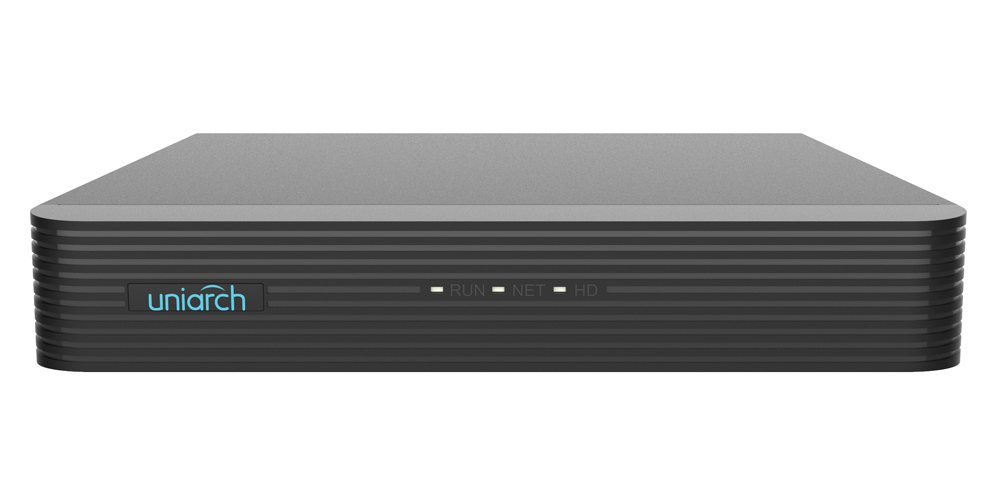

UNIARCH NVR καταγραφικό NVR-104E2-P4, H.265/H.264, 8MP, 4 κανάλια PoE

Τεχνικά Χαρακτηριστικά

Video/Audio Input

• IP Video Input: 4-ch

Network

• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 40Mbps
• Remote Users: 128
• Protocols: P2P, UPnP, DHCP

Video/Audio Output

• HDMI Output: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• VGA Output: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Recording Resolution: 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 4-ch
• Corridor Mode Screen: 3/4

Decoding

• Decoding format: Ultra 265/H.265/H.264
• Live view/Playback: 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF
• Capability: 1x 8MP @30, 1x 5MP @30, 2x 4MP @30, 4x 3MP @25, 4x 1080p @30, 8x 720p @30

Hard Disk

• SATA: 1x SATA interfaces
• Capacity: up to 6TB for each disk

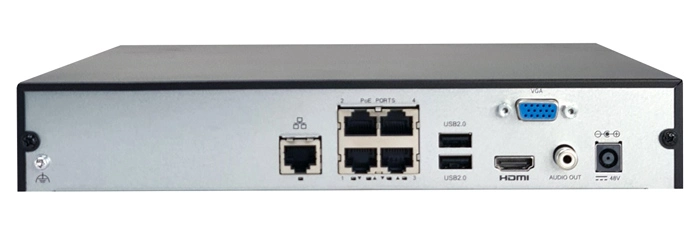

External Interface

• Network Interface: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• USB Interface: Rear panel: 2x USB2.0
• Alarm In: 4-ch
• Alarm Out: 1-ch

PoE

• Interface: 4x RJ45 10M/100M self-adaptive Ethernet Interface
• Max Power: Max 30W for single port, Max 54W in total
• Supported Standard: IEEE 802.3at, IEEE 802.3af

General

• Power Supply: 48V DC
• Power Consumption: </= 9 W (without HDD)
• Working Environment: -10 °C ~ 55 °C, Humidity: </=90% RH (non-condensing)
• Dimensions (WxDxH): 260 x 243 x 46mm
• Weight: ~1.2Kg
